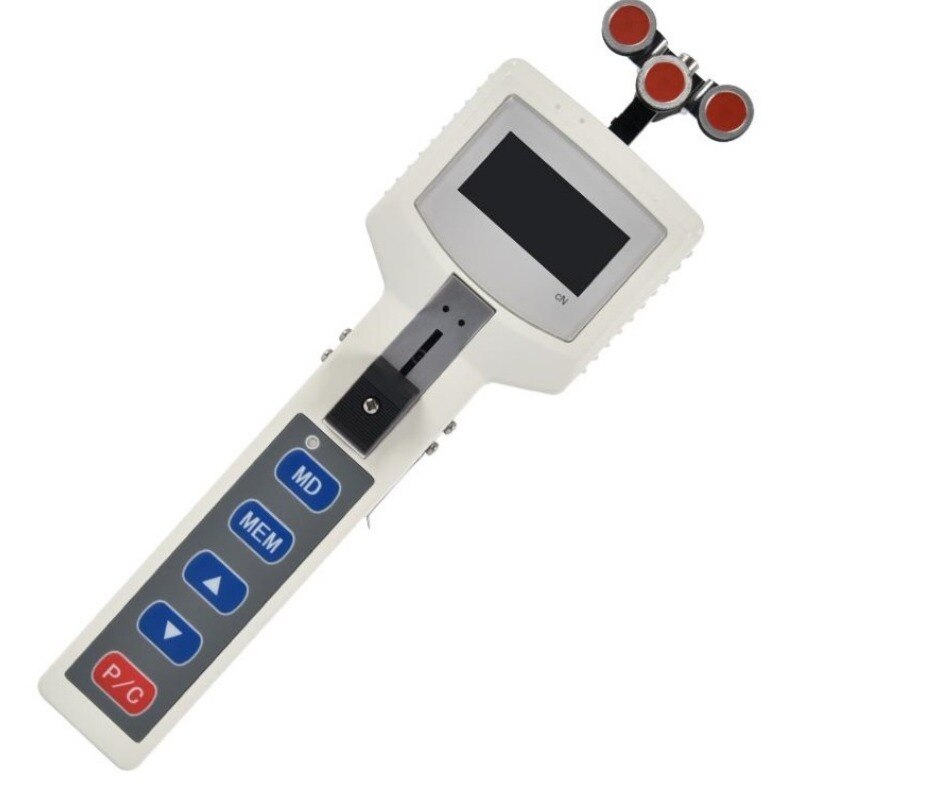

Application The WTM10K Digital Wire Tension Meter is a hand-held device which accurately measures the running as well as static tensions of a wide variety of process materials including Wires, fibers, optical fibers, etc. It employs the "three-roller principle" of tension measurement where the outer two reference rollers are fixed to create a known angle of wrap over the middle sensing roller. The middle roller is part of a precision strain gauge sensing system which accurately measures the resulting force on the roller. This value is converted into a highly accurate and repeatable tension value using proprietary computer calibration formulas which correct for different material diameters, gravity and other critical Parameters. Features: High accuracy and high resolution. Digital display with no guessing or errors. With 4 measurement unit for selection and conversion, N, kg, lb, g. Power is supplied by 4xAAA alkaline battery. With 10 minutes auto power off and manual power off. Models: • WTM/200 (0.1cN to 200cN) • WTM/500 (0.1cN to 500cN) • WTM/1000 (50.0 cN to 1000cN) • WTM/2000 (200.0cN to 2000cN) • WTM/2500 (250.0cN to 2500cN) • WTM/5000 (500.0cN to 5000cN) • WTM10K (1.0Kg to 10.0Kg) Key Specifications: Unit kgf, gf, N, Lbf Resolution 0.001kgf, 0.001N, 1gf, 0.001Lbf Accuracy ±1.0% or better Overload Capacity 150% of Full Scale Measuring Principle Strain gauge Sensing Roller Deflection of Sensing Roller (max.) 0.2mm Temperature Coefficient Zero: less than +0.3% FS/°C Span: less than +0.01% FS/°C Display Black/Blue Back light LCD Overrange Indicator Buzzer Alarm Power Off 10 Minutes Auto Power Off, Manual Power Off Roller Material Stainless Steel (Standard) Plastic (Optional) Maximum Speed 2000m/min Power Supply 4x1.5 AAA(UM-4) Battery Operation Temperature 0~40°C Operation Humidity <80% Weight 400g Size Main Unit: 160x80x30mm Power Supply: 4x1.5 AAA(UM-4) Battery Weight: 400g
